Top Quality Means the Live safety!
Double Well garuantee we offer Standard ss316 Stainless steel Camlock coupling Ni≥9%Mo Ni≥2%
These days, as stainless steel camlock coupling market clients have different demand, especially request for the lowest prices. Many factories offer stainless camlock couplings body is ss304, but marked in ss316 which material Nickle less than 9%, do not contain Mo.Even some factories, offer the ss301 or ss201 body, but marked in ss316. These bad quality stainless camlock couplings are easy to get rust, it will demange your tough gotten good reputation, and even threaten the live safety. So please choose the standard stainless steel camlock coupling.
Our stainless steel camlock coupling data sheet as follows:

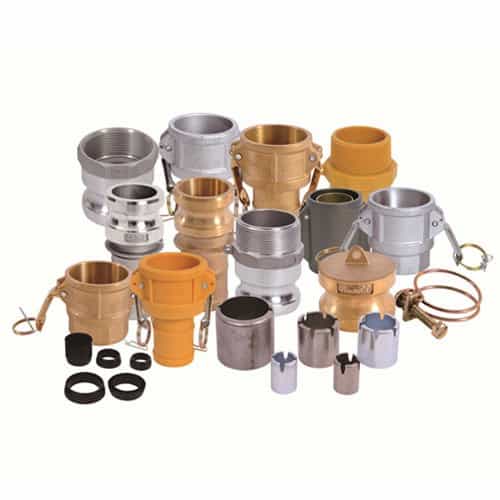

Name: stainless steel camlock coupling
Standard: According to A-A-59326(previously called MIL-C-27487) or DIN 2828/EN 14420-7.
Casting method: Investment casting
Sizes available: From 1/2″ to 8″
Types available: A, B, C, D, DC, DP, E,F,we also can offer flanged camlock couplings FC(Flanged end x coupler) andFA(Flanged end x Adaptor)
Body material:CF8M casting (SS316) Ni≥9%Mo Ni≥2%
CF8 casting (SS304) Ni≥8%
Aluminium camlock coupling,Forged brasscamlock coupling,sand casting brass camlock hose fitting,PP camlock hosecoupling,Nylon cam lock hose coupling,carbon steel camlock coupling areavailable on request
Cam levers:We use stainless steel camlevers.
Pins, Rings and Safety clips:
We use stainless steel Pins, Rings andSafety clips.
(Note: Safety clips are available whenrequired by the client, safety clips are free for each body)
Sealings:NBR/EPDM/Viton/PTFE envelopgasket, Other materials are available on request.
Threads:
NPT
BSP (We usually make the female threadparallel BSPP, male thread tapered BSPT)
G Thread (Female BSPP, Male BSPP) is alsoavailable.
Working Pressure:
1/2″-2″:250psi; 21/2″-3″:150psi;4″: 125psi; 5″-6″:75psi; 8″ 50psi.
Testing Pressure: 1.5 times working pressure.
We supply competitive top quality Stainlesssteel camlock coupling. Check more detail information about Stainless steelcamlock coupling, please feel free to contact us!
