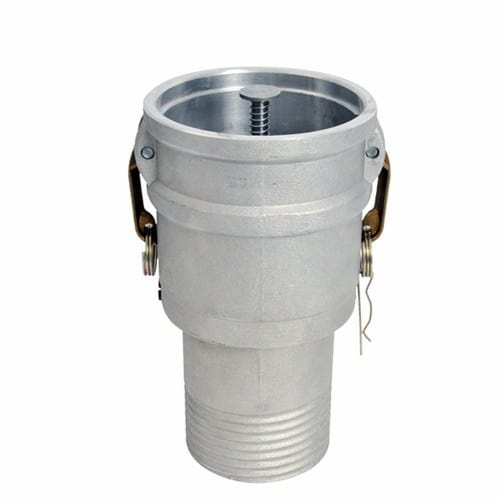

TECHNICAL INFORMATION
Open Area:4500mm2 = (76 dia hole).
Poppet :25mm travel
Poppet opens between 4 tp 6 kPa vacuum for tank protection.
Materials:
1)body and poppet:Aluminium
2)Handle:Brass
Stainless steel spring
3)Poppet O-ring:Viton or NBR,
4)Camlock seal:nitrile
Standards:
Complies with AS5602:2009: Refined petroleum products—Vehicle bottom loading and vapour recovery. (selectivity counter-bore provided).
Mounting:
100mm hose tail
4″ NATO standard camlock
Weight:2kg.
